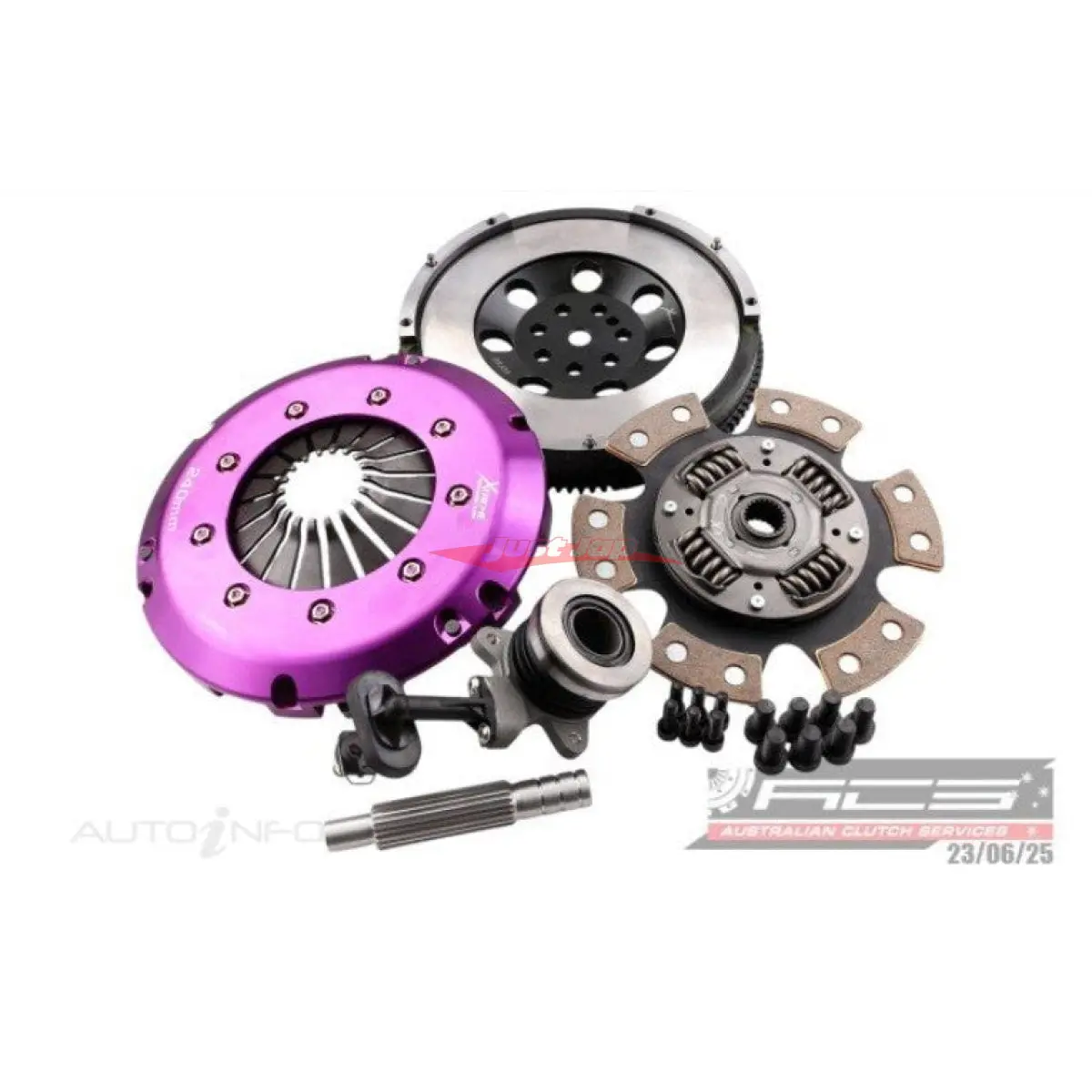

High-performance organic clutch kit featuring a lightweight chromoly flywheel and integrated slave cylinder—engineered for the Hyundai i20 N with G4FV engine.

Description

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power-holding capability whilst retaining near factory-type driveability, and is designed primarily for high-performance road-going vehicles. These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use an organic friction disc to retain driveability similar to standard.

Specifications:

• Flywheel Step: -9.5
• Clutch Disc Diameter (mm): 240
• Clutch Disc Spline Count: 20
• Clutch Disc Spline Diameter (mm): 22.2
• Disk Type Sprung
• Friction Material Organic
• Stage 1
• Recommended Use Street
• Clamping Force Increase 30%
• Torque (Nm) Inc FOS 600
• Torque (ftlbs): 440
• Fly Wheel Included Yes Single Mass
• Fly Wheel Bolts Included Yes
• Pressure Plate Bolts Included Yes
• Concentric Slave Included Yes
• Spline Grease Yes
• Weight (kg): 13.3
• Note: Conversion to SMF (Single Mass Flywheel)

Vehicle Compatibility:
– Hyundai i20N BC3 Hatch 1.6L DOHC VVT G4FV (2021-)
