Description

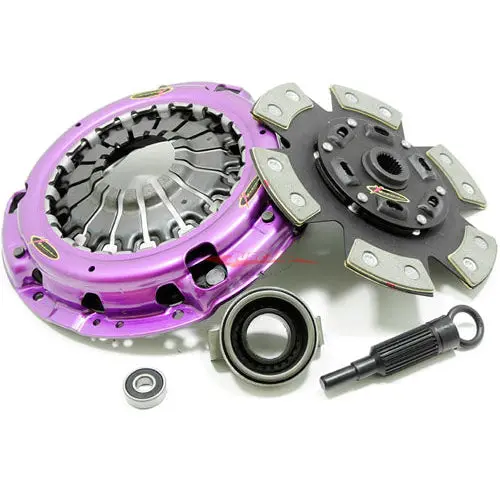

The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track-going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily-driven vehicles.
These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc, which can result in more noise and harsher engagement.
Specifications:
- Flywheel Step (mm): Flat
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.4
- Disc Type: Sprung
- Friction Material: Ceramic
- Stage: 1
- Recommended Use: Track
- Clamping Force % Increase: 35%
- Torque (Nm) Inc FOS: 570
- Torque (ftlbs) Inc FOS: 420
- Spigot Bush/Bearing Included: Yes
- Aligning Tool Included: Yes
- Spline Grease Included: Yes
- Weight (kg): 9.5
Note 1: Replacement Clutch Kit for Conversion to Single Mass Flywheel
Note 2: Includes Thrust Bearing Fitting Tool
Vehicle Compatibility:
– Nissan S15 Silvia (6 Speed)
– Nissan S15 200SX (6 Speed)
