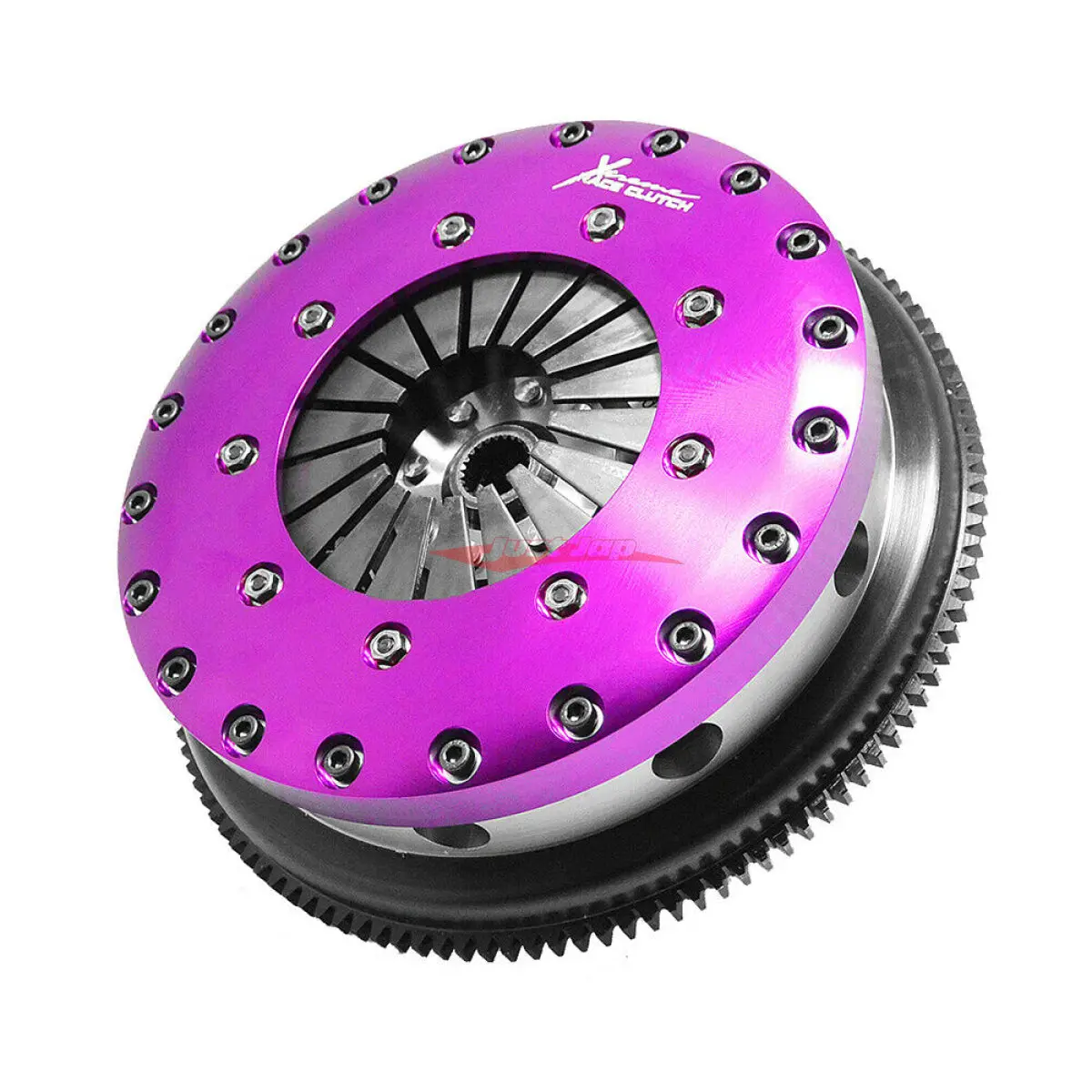

Xtreme 230mm Twin-Plate Race Clutch with Organic Solid Center — Compatible with Toyota 1JZ-GTE Vehicles Including Chaser, Cresta, Mark II, Soarer, Supra, and Verossa

Description

The Xtreme Clutch 230mm Twin Plate Organic Clutch kit offers high torque capacity whilst retaining driveability on the street.

Designed specifically for high horsepower street driven vehicles, the 230mm Twin Plate Organic is the ultimate road going clutch. The Twin Plate Organic kit optimizes pedal feel and reliability in street driven vehicles.

Xtreme understands that you want to be able to drive your performance vehicle every day. That’s why they focus so heavily on consistent drivability, the light pedal effort, and smooth engagement.

Specifications:

• Flywheel Step: +3.8mm
• Clutch Disc Diameter: 230mm
• Clutch Spline Count: 21mm
• Clutch Disc Spline Diameter: 29.8mm
• Disc Type: Solid
• Friction Material: Organic
• Multi Plate: Twin
• Recommended Use: High Power Street
• Torque (Nm) inc FOS: 1000
• Torque (ftlbs) inc FOS: 740
• Spigot Bush/Bearing Included: Yes
• Aligning tool Included: Yes
• Flywheel Included: Single Mass
• Flywheel Bolts Included: Yes
• Pressure Plate Bolts Included: Yes
• Spline Grease Included: Yes
• Note: Pull to Push Type Conversion
• Weight (kg): 16.0

Vehicle Compatibility:
– Toyota Chaser JZX90 (1JZ-GTE)
– Toyota Chaser JZX100 (1JZ-GTE)
– Toyota Cresta JZX90 (1JZ-GTE)
– Toyota Cresta JZX100 (1JZ-GTE)
– Toyota Mark II JZX90 (1JZ-GTE)
– Toyota Mark II JZX100 (1JZ-GTE)
– Toyota Mark II JZX110 (1JZ-GTE)
– Toyota Soarer JZZ30 (1JZ-GTE)
– Toyota Supra JZA70 (1JZ-GTE)
– Toyota Verossa JZX110 (1JZ-GTE)
– Toyota Supra JZA70 (1JZGTE)
– Toyota Soarer JZZ30 (1JZGTE)
