Tomei Type R Rear Sump Oil Pan Baffle Kit for Toyota Supra JZA80 & Soarer JZZ30 (1JZ-GTE/2JZ-GTE)

Description

Excellent effect on the circuit where strong lateral G is repeated!

When acceleration / deceleration or cornering causes a change in posture or inertial force in the vehicle, the oil will be biased or jump up.
Under such circumstances, the normal baffle plate does not work and causes the engine to run out of oil film.
The TOMEI baffle plate is a composite baffle plate for sports driving that was devised so that the oil sucked in would not be interrupted under all driving conditions.

Prevents oil troubles when cornering

The bias of the oil is prevented by the movable baffle by the hinge, and the baffle plate inserted parallel to the bottom surface catches the inclination of the oil level due to the oil jumping and the posture change.

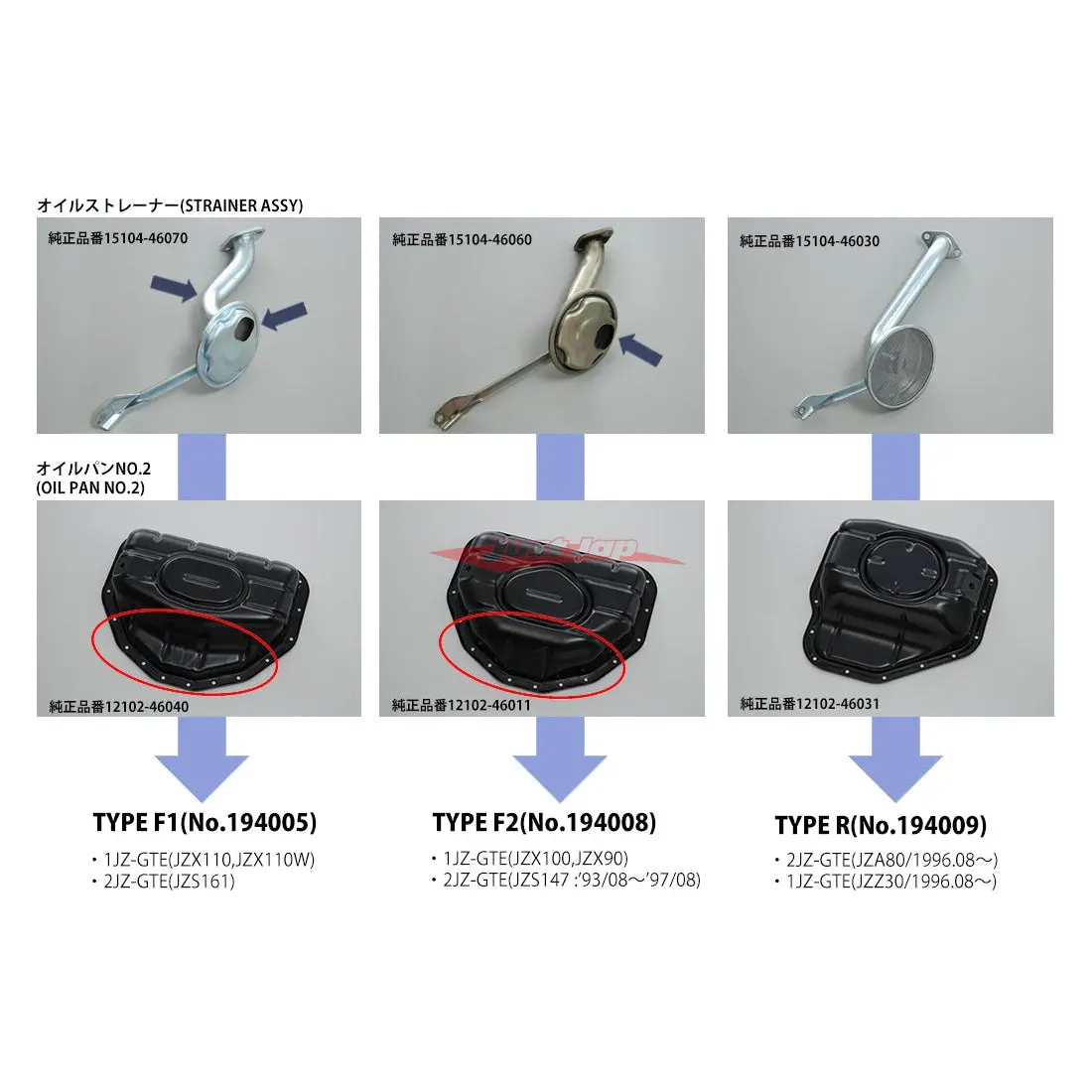

Designed to be compatible with Genuine Toyota sump P/N 12102-46031 and 15104-46030

Vehicle Compatibility :

– Toyota Supra JZA80 08/96~ (2JZ-GTE)
– Toyota Soarer JZZ30 08/96~ (1JZ-GTE)
