Tomei Type F1 Front Sump Oil Pan Baffle Kit – Compatible with Toyota 1JZ-GTE and 2JZ-GTE Engines (Chaser, Mark II, Aristo)

Description

Excellent effect on the circuit where strong lateral G is repeated!

When acceleration / deceleration or cornering causes a change in posture or inertial force in the vehicle, the oil will be biased or jump up.
Under such circumstances, the normal baffle plate does not work and causes the engine to run out of oil film.
The TOMEI baffle plate is a composite baffle plate for sports driving that was devised so that the oil sucked in would not be interrupted under all driving conditions.

Prevents oil troubles when cornering

The bias of the oil is prevented by the movable baffle by the hinge, and the baffle plate inserted parallel to the bottom surface catches the inclination of the oil level due to the oil jumping and the posture change.

Note: For Front Side Oil Pan Vehicles.

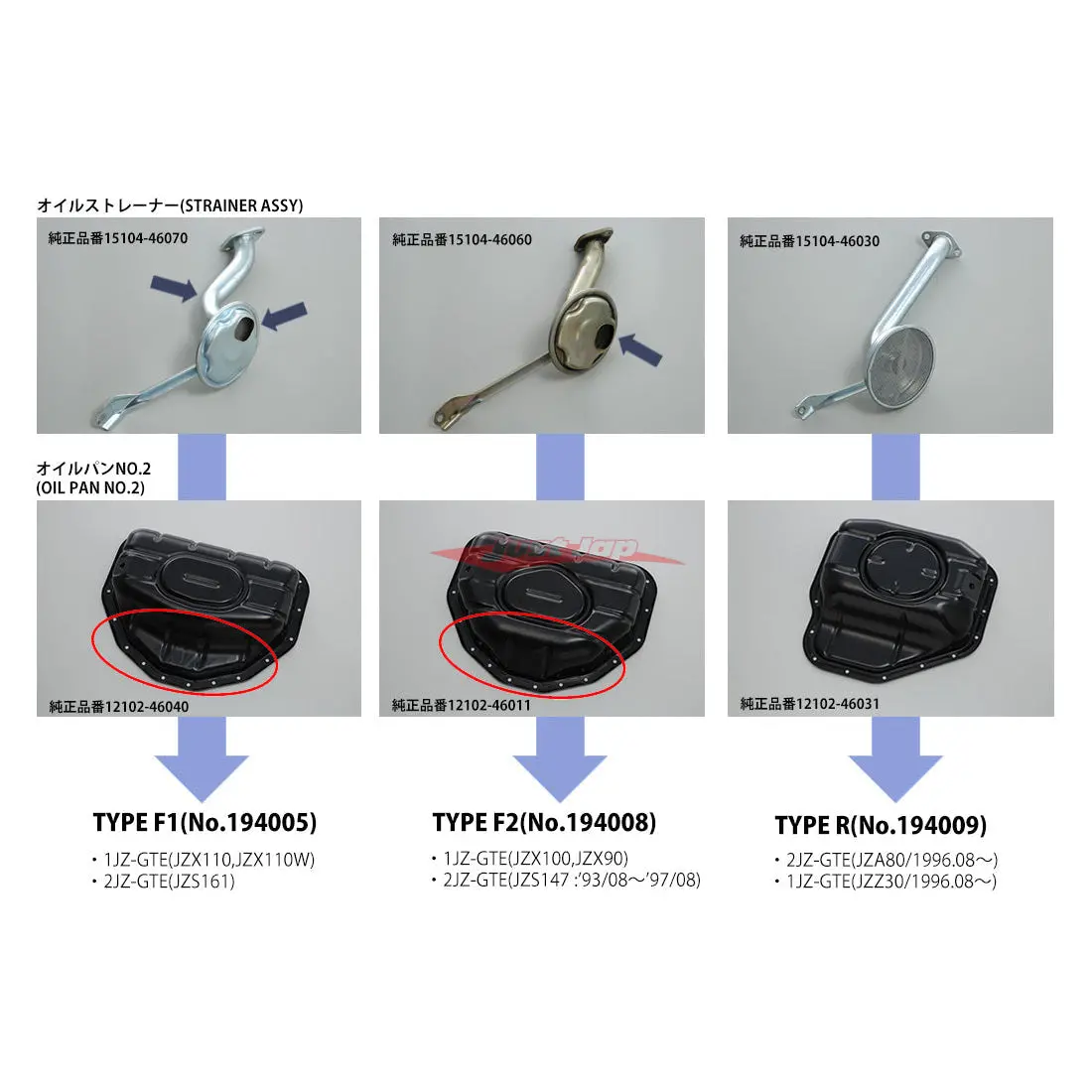

Suitable for engines with a combination of Oil Pan Shown in Image (No#2)
(Genuine Oil Pan Part Number 12102-46040)
(Genuine Oil Pick Up Part Number 15104-46070)

(Center & Rear side oil pan vehicles this cannot be installed)

Vehicle Compatibility:

– Toyota Chaser Mark II JZX110/W (1JZ-GTE)

– Toyota Aristo JZS161 (2JZ-GTE)
