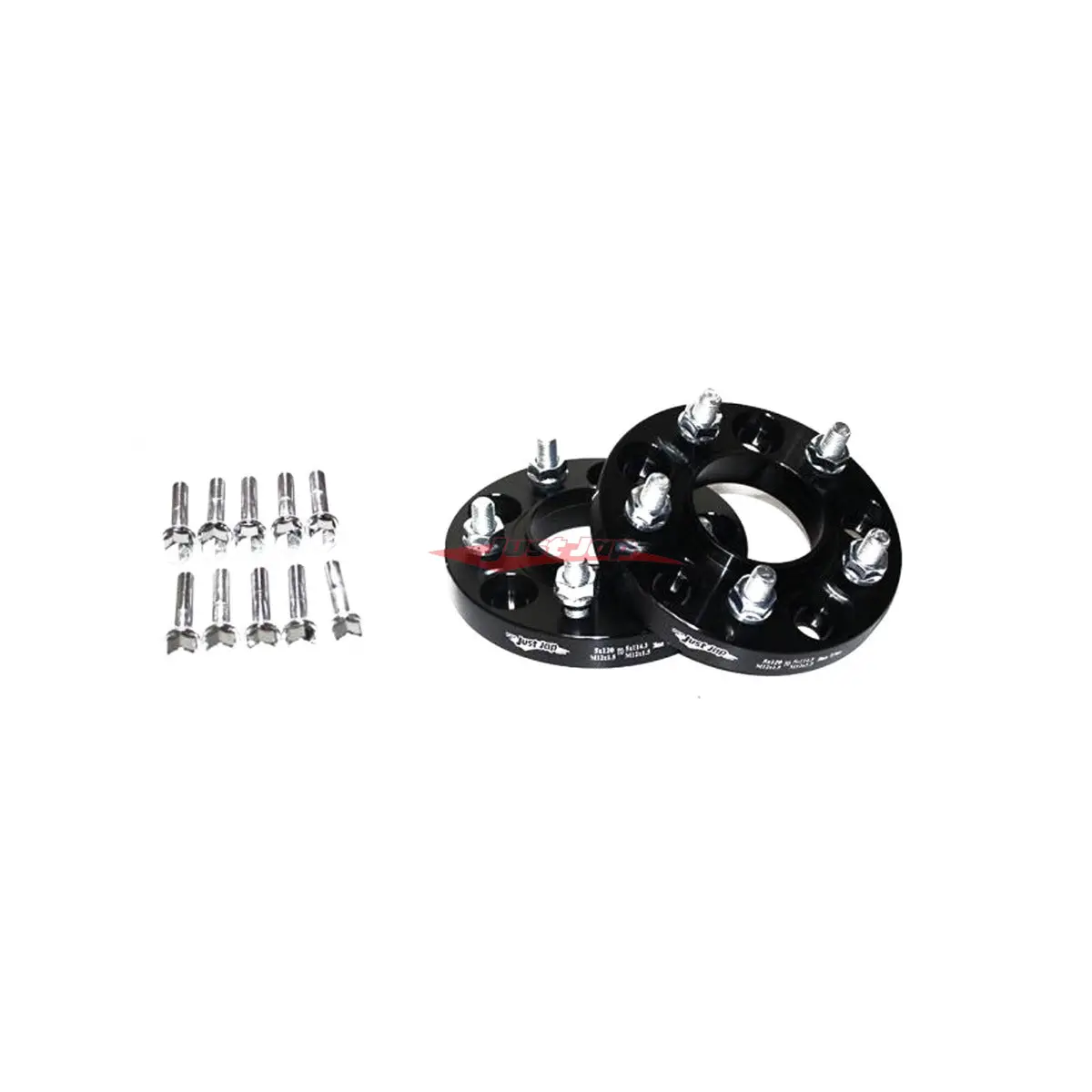

JJR 20mm Bolt-On Wheel Spacers for VW and Audi — Converts 5×112 to 5×114.3, Compatible with M14x1.5 and M12x1.5 Lug Threads, 57.1mm Hub Bore

Description

– 5 x 112 PCD Conversion to 5 X 114.3 Stud Pattern
– M14 x 1.5 > M12 x 1.5
– 26mm Thread , 13R/17 Hex
– 20mm
– 57.1mm Hub Centric Hole Size
– 6061 Aluminium
– Black Anodized Finish
– 12 Months Warranty

Vehicle Compatibility:

– Audi A3 8P (2003-2012)
– Audi A3 8V (2012-)
– Audi A4 B5 (1994-2000)
– Audi A4 B6 (2000-2004)
– Audi A4 B7 (2004-2008)
– Audi A6 (1994-2011)
– Audi A8 D2 (1994-2002)
– Audi A8 4E (2002-2010)
– Audi All-Road (2000-2012)
– Audi Q2 (2016-)
– Audi Q3 (2011-)
– Audi R8 (2007-)
– Audi RS3 (2011-)
– Audi S4 (1994-2009)
– Audi S6 (1994-2011)
– Audi S8 (2000-2010)
– Audi TT 8J (2007-)
– VW Arteon (2017-)
– VW Caddy (2004-)
– VW CC (2012-)
– VW Cross Golf (2007-)
– VW Cross Touran (2007-)
– VW  EOs (2006-)
– VW Golf 5 (2003-2008)
– VW Golf 6 (2008-2012)
– VW Golf 6 Plus ( 2009-2014)
– VW Golf 7 (2012-)
– VW New Beetle (2011-)
– VW Passat B5 (1998-2005)
– VW Passat B6 (2005-2010)
– VW Passat B7 (2010-2014)
– VW Passat CC (2008-2012)
– VW Sharan (1995-2010)
– VW Tiguan (2007-)
– VW Touran (2003-)

WHEEL SPACER INSTALLATION GUIDE
1. Place the wheel spacers over the hubs, aligning the lug holes.
2. Using a torque wrench, tighten the spacer bolts/nuts to the same spec as the manufacturer’s recommended torque specification in a criss-cross pattern, then do the same for the wheel.
3. Take the car for a short test drive.
4. Reinspect all wheel spacer bolts/nuts are to manufacturers recommended torque specifications.
