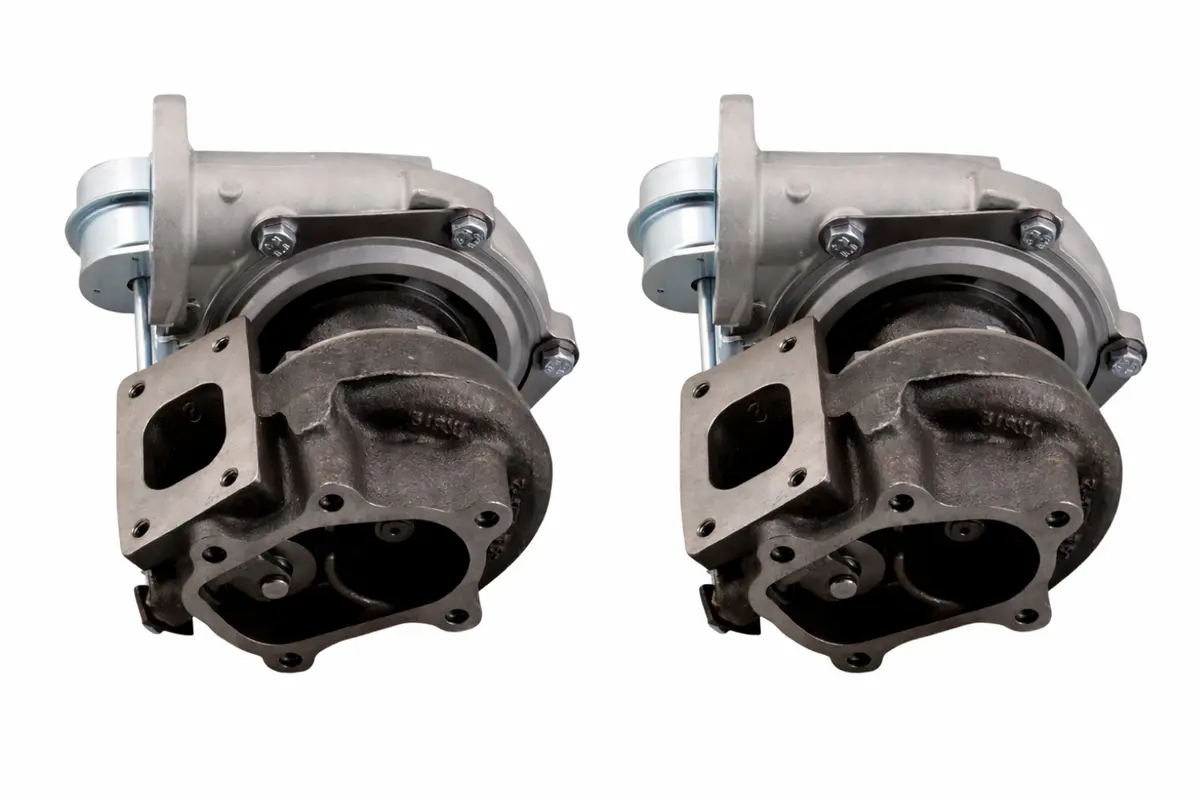

High-performance Garrett GT2860R-7 twin turbocharger kit compatible with Nissan Skyline R32, R33, R34 GTR, and C34 Stagea 260RS models equipped with the RB26DETT engine

Description

The Garrett GT2860R (-5) is designed as a Bolt-On Upgrade Turbocharger for the Nissan R34 GTR N1 RB26DETT Engine

• Bearing Type: Ball Bearing
• Cooling System: Oil & Water Cooled
• Turbine Housing: Internally Wastegated 0.64a/r
• Base Flange: T25 Nissan Skyline GTR Specific
• Exhaust Outlet Flange: 5 Bolt Nissan Skyline GTR Specific
• Actuator Pressure: 13.63psi
• Horsepower: 170 – 270
• Previous Part Number: 707160-5007S

Product Features:

• Turbine Housing – 0.64a/r Turbine Housing allows for good low to mid-range power even on factory engines.
• Factory Turbo Orientation – Oil Feed and Water Lines from the factory Turbochargers can be re-used, and the orientation is in an identical position to the factory setup, allowing for easy re-fitment.
• Factory Turbo Position – These Turbochargers are identical to a factory unit, and utilize the factory manifold, and exhaust system.

Product Features:

• Turbine Housing – 0.64a/r Turbine Housing allows for good low to mid-range power even on factory engines.
• Factory Turbo Orientation – Oil Feed and Water Lines from the factory Turbochargers can be re-used, and the orientation is in an identical position to the factory setup, allowing for easy re-fitment.
• Factory Turbo Position – These Turbochargers are identical to a factory unit, and utilize the factory manifold, and exhaust system.

Product Notes:

• Aftermarket oil drains will be required, which we offer to match these Turbochargers with the factory oil drain hoses (see related items).
• This Turbocharger is a direct bolt-on replacement for the Nissan RB26DETT (Skyline GTR R32/R33/R34, Stagea 260RS)
• This is the factory turbocharger that is fitted to the Nissan Skyline GTR R34 N1.
• The Turbine Housing has a unique compact 5 bolt pattern that is not interchangeable with the traditional 5 bolt CA18DET/SR20DET pattern.

Turbo Reference Data:

• Turbo PN: 836026-5004S
• CHRA PN: 835998-0003

Compressor Specifications:

• Ind: 46mm
• Exd: 60mm
• Trim: 60
• A/R: 0.80

Turbine Specifications:

• Ind: 53mm
• Exd: 42mm
• Trim: 62
• A/R: 0.64

Vehicle Compatibility:

– Nissan R32 Skyline GTR RB26DETT
– Nissan R33 Skyline GTR RB26DETT
– Nissan R34 Skyline GTR RB26DETT
– Nissan C34 Stagea 260RS RB26DETT
