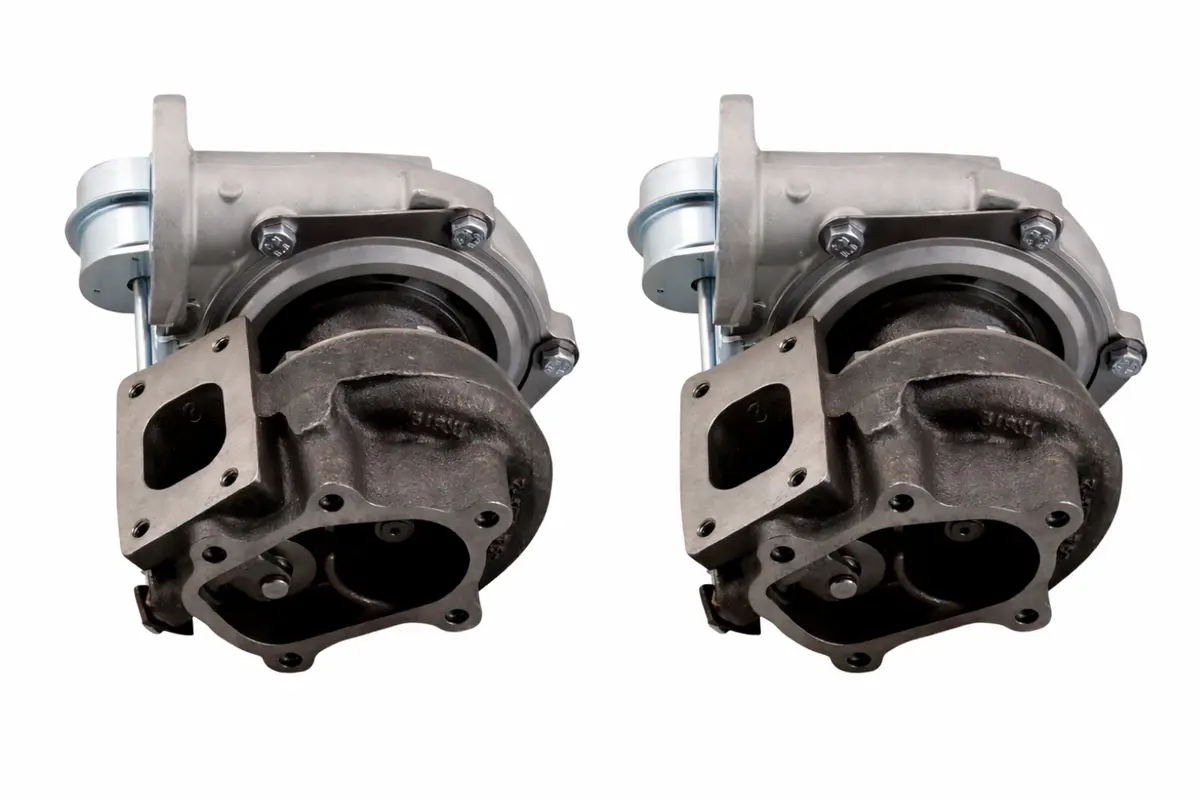

Garrett GT2859R-9 twin turbocharger kit engineered for Nissan RB26DETT engines—compatible with R32, R33, R34 Skyline GT-R models and C34 Stagea 260RS

Description

The Garrett GT2859R (-9) is designed as a Bolt-On Upgrade Turbocharger for Nissan RB26DETT Engines.

• Bearing Type: Ball Bearing
• Cooling System: Oil & Water Cooled
• Turbine Housing: Internally Wastegated 0.64a/r
• Base Flange: T25 Nissan Skyline GTR Specific
• Exhaust Outlet Flange: 5 Bolt Nissan Skyline GTR Specific
• Actuator Pressure: N/A
• Horsepower: 250 – 320
• Previous Part Number: 707160-5009S

Product Features:

• Turbine Housing – 0.64a/r Turbine Housing allows for good low to mid-range power even on factory engines.
• Factory Turbo Orientation – Oil Feed, Oil Drain and Water Lines from the factory Turbochargers can be re-used, and the orientation is in an identical position to the factory setup, allowing for easy re-fitment.
• Factory Turbo Position – These Turbochargers are identical to a factory unit and utilize the factory manifold and exhaust system.

Product Notes:

• These turbochargers are NOT supplied with wastegate actuators. For actuators, please “Click Here”
• This Turbocharger is a direct bolt-on replacement for the Nissan RB26DETT (Skyline GTR R32/R33/R34, Stagea 260RS)
• These are known as the HKS GT-SS Spec Turbochargers, providing great all-round performance for engines in factory specification.
• The Turbine Housing has a unique compact 5-bolt pattern that is not interchangeable with the traditional 5-bolt CA18DET/SR20DET pattern.

Turbo Reference Data:

• Turbo PN: 836026-5002S
• CHRA PN: 835998-0002

Compressor Specifications:

• Ind: 44.5mm
• Exd: 59mm
• Trim: 56
• A/R: 0.42

Turbine Specifications:

• Ind: 54mm
• Exd: 42.4mm
• Trim: 62
• A/R: 0.64

Vehicle Compatibility:

– Nissan R32 Skyline GTR RB26DETT
– Nissan R33 Skyline GTR RB26DETT
– Nissan R34 Skyline GTR RB26DETT
– Nissan C34 Stagea 260RS RB26DETT
