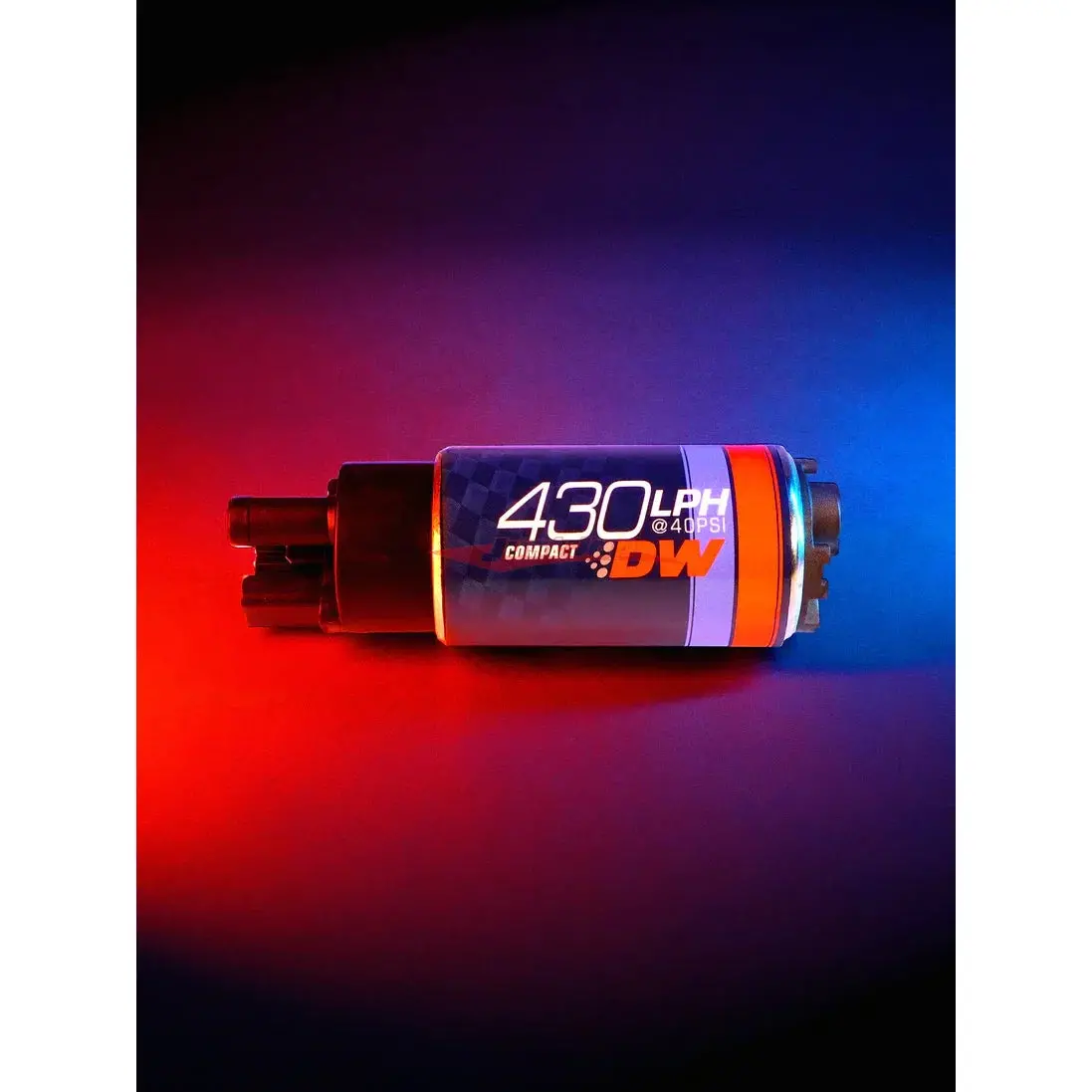

Deatschwerks 430C High-Flow Fuel Pump – 430 LPH for Nissan GT-R R35 (VR38DETT)

Description

The Deatschwerks DW430C 430lph offers the highest flow available in a compact fitment pump. The compact fitment allows drop-in fitment to the Nissan R35 GTR.
Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer-balanced armature.
E85 compatibility is built in via the carbon commutators and a fully encapsulated armature. All DW fuel pumps are backed by a 3-year no-fault warranty.

PRODUCT DESCRIPTION:

Weight: 10.2oz (290g)
External Materials: Electroplated Steel
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16″ Hose Clamp
PRV Activation: 110+ psi
Impeller Design: Single-Scroll Composite Turbine
Connector Terminal: Spade Pos/Neg
Min Voltage Input: 6 Volts
Max Voltage Input: 16 Volts
Current DRAW 40psi: 14.8 amps (13.5v)
To ensure maximum voltage at the pump, a 10-gauge hardwire kit is strongly recommended for optimum performance (DeatschWerks Part #FPHWK-10-HD)

Dimensions

Vehicle Compatibility:
– Nissan R35 GT-R 11/2007- (VR38DETT)

Note: 2pce Required For Installation to Nissan R35 GTR
