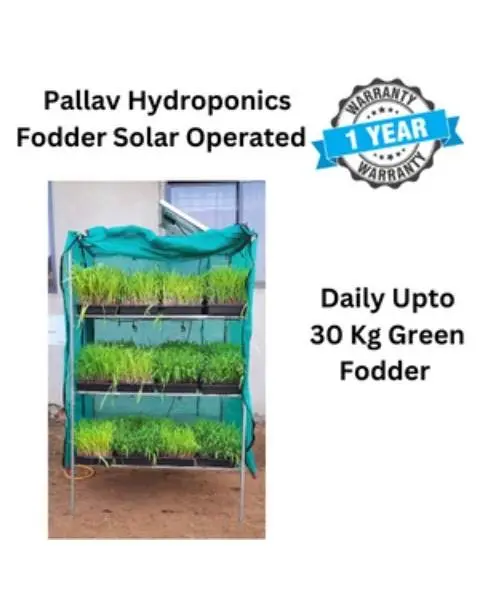

Autostudio Solar Pallav 24-Tray Hydroponic Fodder System | Automated Farming Equipment

Description

ABOUT PRODUCT

• Daily Upto 30 KG Green Fodder At Home Only , minimum Water consumption around 20 liter/day , GI Structure .

Technical Content

• We can set on time and off time of motor ( Preset Timers are their) using Knob
• Controller operates on battery 12v 7 ah ( SMF Exide Battery )
• Controller also operated on solar panel 12v 40 watt
• Day Night mode Switch ( if we have to operate the machine on full day then put it ON , If we have to put the machine OFF in Night then put the switch OFF )
• Battery Level Indicator ( 1 led is low battery , 4 led is battery full )
• MS Powder Coated Body
• Motor 60 watt ( 3-4 liter water discharge per minute )

Things Included

• Hydroponics Controller for 24 tray setup
• Foggers 10 qty
• HDPE Pipe for Connections
• Charger ( to charge the battery )
• Battery 12v 7ah SMF Battery
• Solar Panel 12V 40 watt
• GI Structure
• 24 Tray
• Cover ( Green Net ) , Training , Installation Support

Features & Benefits

FEATURES:

• Compact design of structure
• Galvanized iron (gi material of structure for long life).
• Smart controller inhouse developed
• Manual mode (provision to set ON time in minutes and seconds , OFF time in hours and minutes.
• Smart controller operates on two power sources ( solar , battery . System also has day night mode ( in summers user keeps the system 24 hours ON and in winters/rainy days 12 hours ON ) .
• Very low water consumption.
• Battery has low discharge and overcharge protection.

Machine Specifications

• 2 POWER SOURCES- Solar operated and battery operated.
• Day Night mode.
• GI MATERIAL – Galavinized corrosion free.
• Power consumption- negligible almost zero.
• Very less maintenance.
• Water consumption very less.
• Capacity 30 kg
• 24 trays

ADDITIONAL INFORMATION

• WEIGHT: 55kg

• No. of Packages: 4
