Description

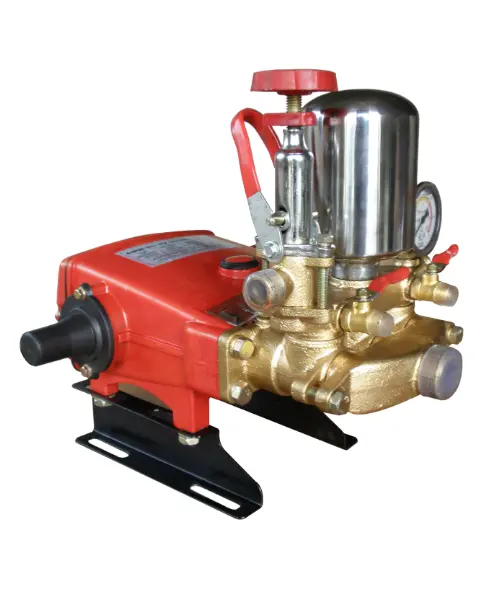

- ASPEE-BILI HTP horizontal triplex power sprayer unit, developing up to 500 psi (35 bar) pressure and giving free discharge of 30 lit/min at 900 rpm. Sprayer Supplied with pulley, pressure vessel, pressure indicator, by pass cum pressure regulator valve, 3 meter long by-pass & suction hose with strainer, couplings for delivery hose.
Features & Benefits
- Heavy duty & efficient sprayer
- Heavy duty industrial quality brass stamping material
- Stainless steel piston
- All working parts are lubricated by oil bath
- Aluminum pressure die casting connecting Rod
- Control valve assly. With pressure regulator, by-pass
- Pulsation free spray
- Develop pressure up to 500 psi max.
- Sturdy/rugged construction
Machine Specifications
- Material of Construction: C.I.
- Suction capacity (lpm): 30
- Normal working pressure: 100 – 200 PSI
- Max. Pressure: 500 PSI
- Pump revolution: 950
- Power (hp): 3 ~ 4 HP
- L X W X H: 340 X 300 X 295 mm
- Weight (without oil): 7.5 kg (approx) 0 psi max.
- Sturdy/rugged construction
