AEM 340LPH E85-Compatible In-Tank Fuel Pump Kit for Nissan GT-R R35 (2007–Present)

Description

Hoping to push your Nissan GT-R beyond the basic bolt modification level or wanting to utilize E85 fuel for your Flex Fuel tune? Upgrade the in-tank fuel pumps to ensure the fuel injectors are fed with sufficient fuel pressure to produce the desired results.
AEM’s 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100, and all types of gasoline.
The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high-performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.
The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre-filter, end cap and rubber buffer sleeve.  Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.

TECHNICAL SPECS:

• Weight: 12.5oz (354grams)
• Outside Diameter: 39mm OD
• External Materials: Black-plated steel with laser etching.
• Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
• Outlet Fitting: 8 mm hose clamp. Offset
• PRV Activation: 80 PSI
• Impeller Design: Single-Scroll Ceramic Turbine

VOLTAGE SPECS:

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5v)
• Current Draw (80 psi): 15 amps (13.5v)
• Fuse: 20 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

Features:

• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100, and all types of gasoline
• Designed for high output naturally aspirated and forced induction EFI vehicles
• Tested to flow 340 lph @ 40 PSI
• 39mm diameter fits most applications
• Offset inlet design eases installation
• Each pump is individually tested

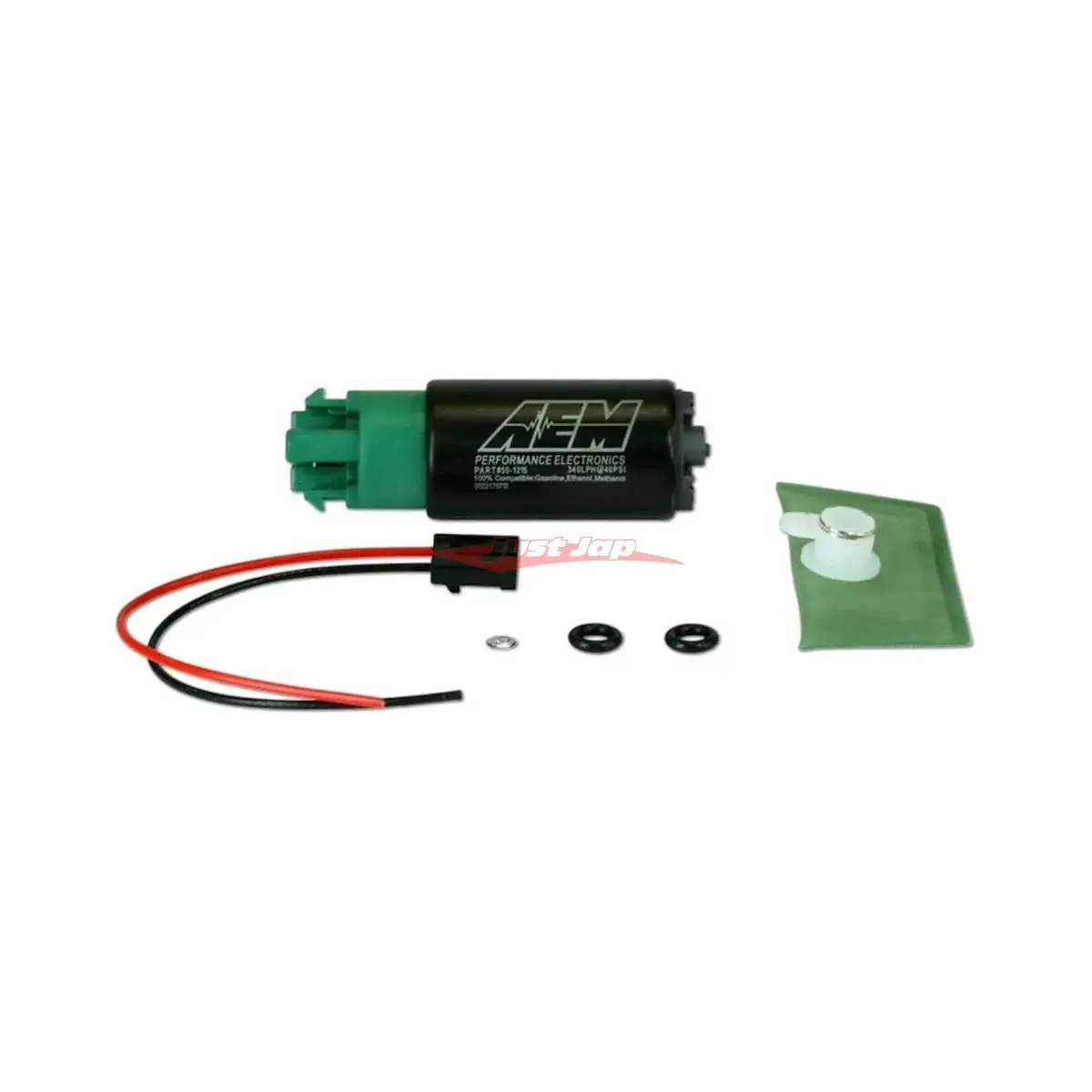

• Kit includes fuel pump, rubber sleeve and end caps, pre-filter, and flying lead
• In tank design

Specs:

Nissan GT-R High-Flow Fuel Pump Kit:

• Includes 2x Fuel Pumps
• Compact Size (65mm length x 39mm diameter)
• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100, and all types of gasoline
• Tested 340lph @ 40psi

Vehicle Compatibility:
– Nissan R35 GTR (11/2007-)
